A dimension consists of a set of values. For example:
  • A Department dimension might include values: Engineering, Sales, Product.
  • A Region dimension might include values: APAC, US, EMEA.

​
How to create & populate dimensions

​
Integration-powered dimensions

When you create a database using an integration in Runway, dimensions are automatically created based on structured data from the source system. For example:
  • Connecting your General Ledger will create a dimension like GL Account Name, containing all account names from your ledger. New accounts added to your GL will automatically appear as new dimension values in Runway.
  • Connecting your HRIS system will create dimensions like Team, Department, Title, Payment Currency, and Office, based on the single-select fields in your HRIS.
  • A CRM integration may create dimensions like Pipeline Stage or Account Owner, depending on the structure of your CRM data.
These integration-created dimensions are automatically maintained and kept up to date as your source systems sync. For example, if a deal’s pipeline stage changes in your CRM, that change will automatically reflect in Runway. You can reuse integration-powered dimensions throughout your Runway model. Read more about how to connect and use integration data in Runway.

​
Manually creating & populating dimensions in databases

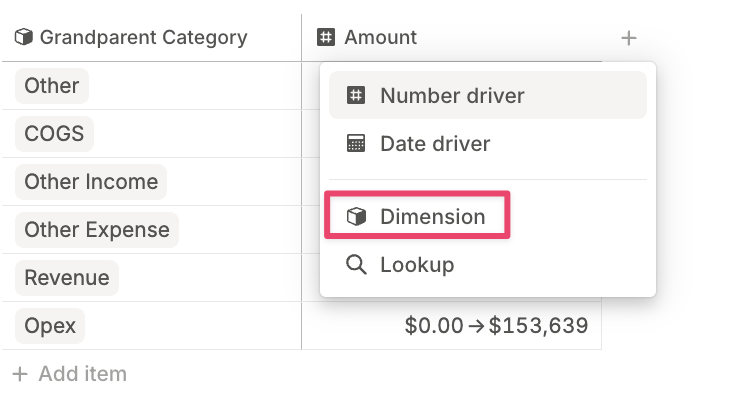

  1. When working in a database, click the + button at the far right to add a new column. In the menu, select Dimension. Add Dimension Column Pn
  2. From there:

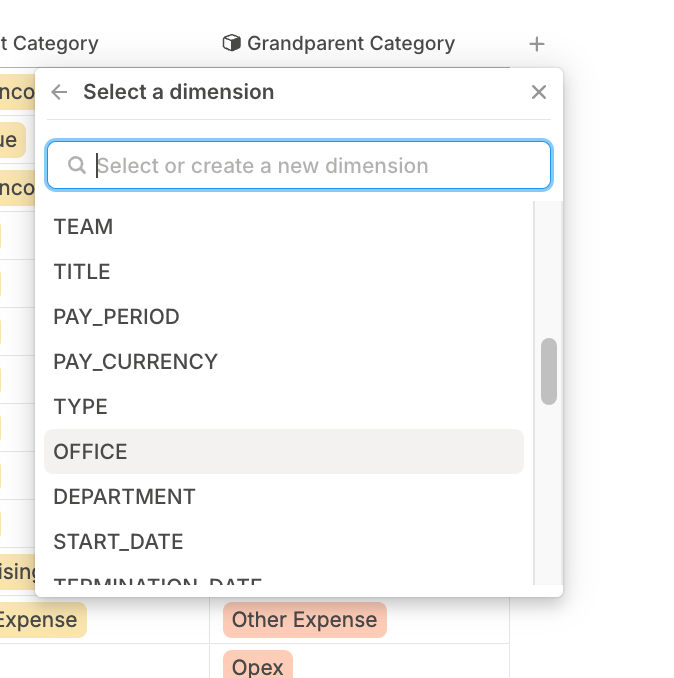

    • You can search for an existing dimension to reuse across multiple databases. Whenever possible, reuse existing dimensions rather than creating new ones to maintain your model’s interconnectedness. Search Dimension Column Pn

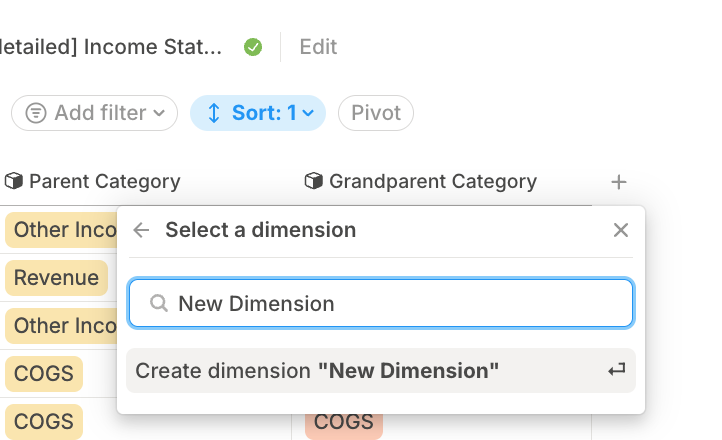

    • Or, start typing a name and hit Enter to create a new dimension from scratch. Create Dimension Column Pn
  3. Once the dimension column is added to your database, you can begin setting the dimension values for each row.
  4. Instead of setting dimension values manually for each cell, you can quickly populate all cells at once using lookup logic.
This is useful for enriching your data with metadata like Region, Initiative, or Product Line—especially when those dimensions aren’t coming from a connected system.

​
Manually creating & populating dimensions in a model

You can also segment a unsegmented driver in a model.
  1. Click the 6-dot menu to the left of the driver name in your model.

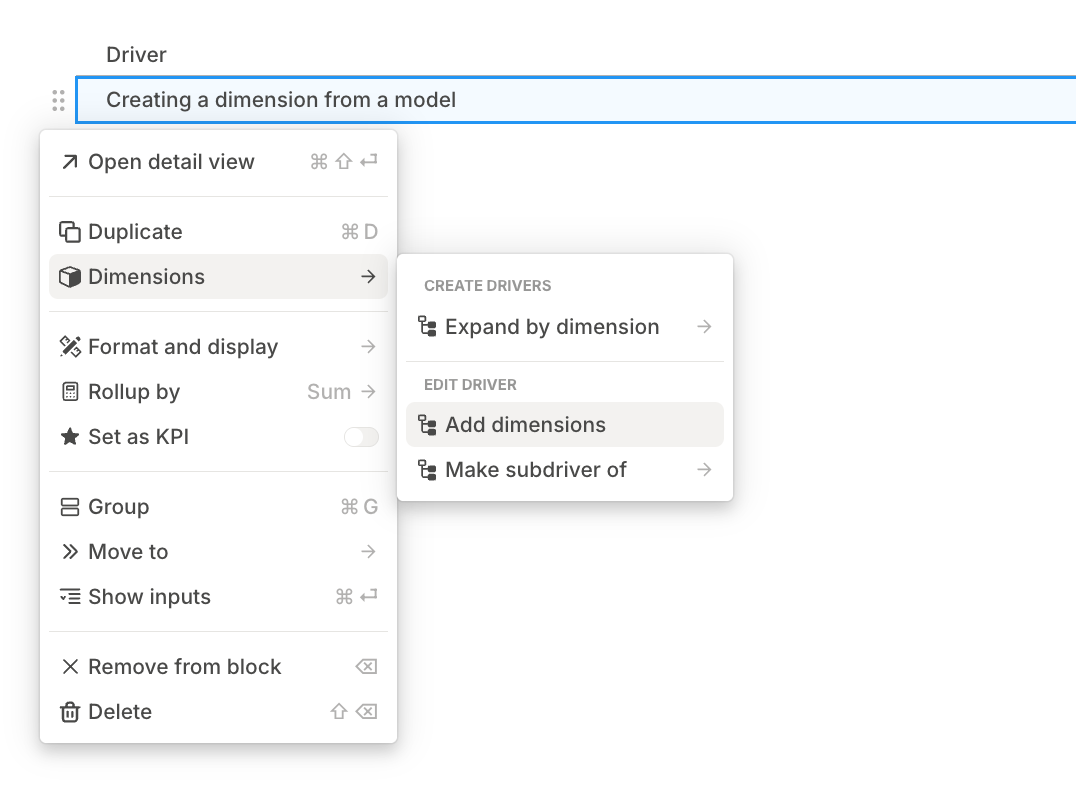

  2. Hover over Dimensions, then select Add dimension. Add Dimension To Driver Pn

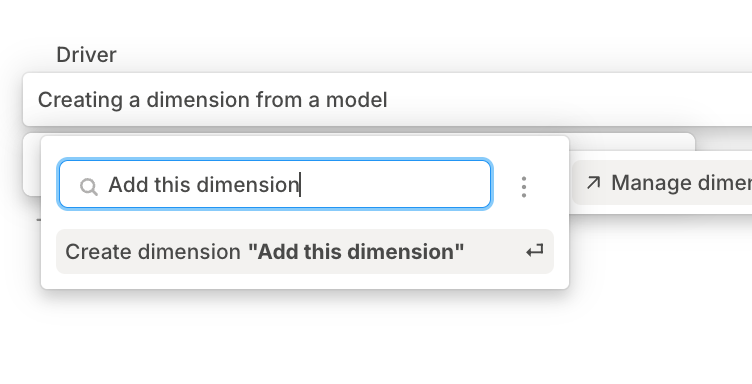

  3. You can choose an existing dimension from the list, or type a new name and hit Enter to create a new one. Create Dimension Through Driver Pn
  4. After creating a new dimension, you’ll be prompted to define its values (e.g., “Basic,” “Premium,” etc.) directly from the submenu.

​
Managing dimensions

You can also manage dimensions globally in Runway using the dimensions manger. There are two ways to access it:

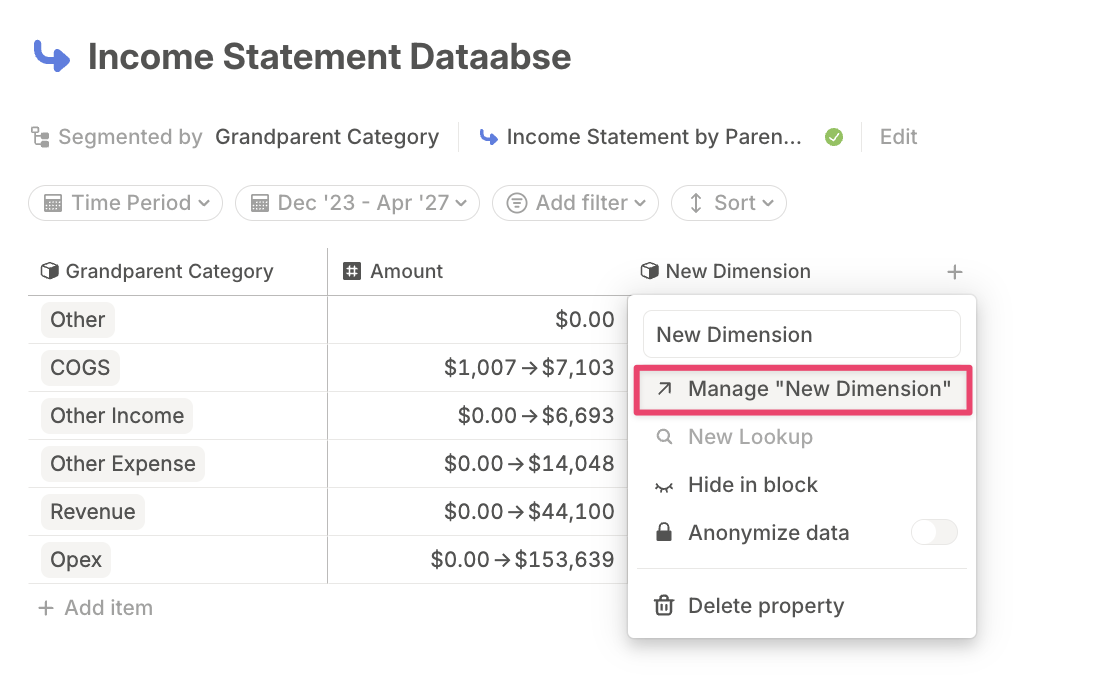

  • From any dimension column in a database, click the column header and select Manage dimension. Go To Dimension Settings Pn
  • Or go to Settings → Dimensions from your user menu (top right corner of Runway).
In the dimensions manager:
  • Click + Add Dimension to create a new global dimension.
  • Click + Add [Attribute] (e.g. + Add Region) to add a new item to an existing dimension.
Dimensions Settings Pn This is the best place to manage dimension lists that are used across multiple databases.
